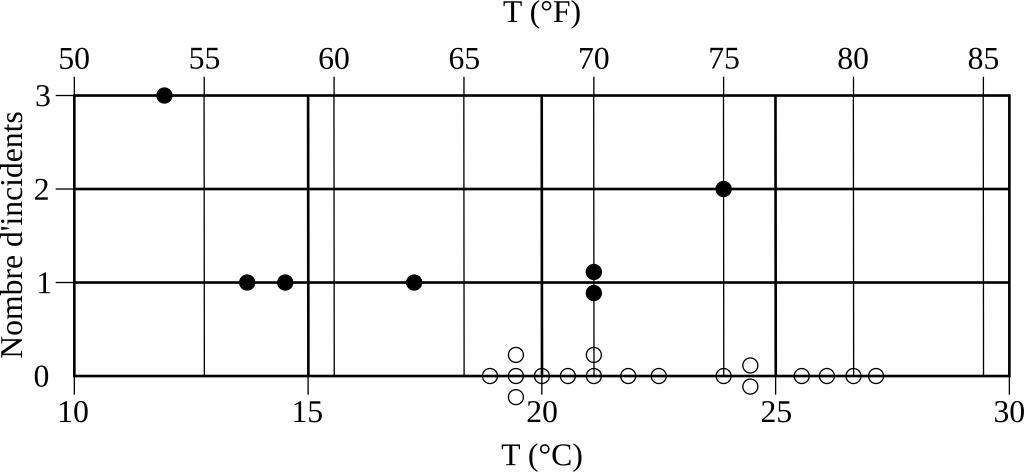

| Keywords: Defaillance joint Challenger vs temperature.svg en Space shuttle Challenger number of failure of the Morton-Thiokol gaskets vs the external temperature at the launching Initially only the incidents were reported black dots which shows no clear trend If the launching without incident are reported white dots it becomes then clear that there were always problems below 65°F 18°C fr Navette spatiale Challenger nombre de défailances de joints Morton-Thiokol en fonction de la température extérieure lors du lancement Initialement seuls les problèmes étaient rapportés points noirs ce qui ne permet pas de dégager une tendance Si par contre on reporte les lancements sans incident points blancs il devient clair qu'il y a toujours eu des problèmes en dessous de 65°F 18°C 2012-09-13 10 15 33 own from Series title Folio essais Paris 2002 978-2-07-031542-0 p 114 Cdang inkscape cdang cc-zero Uploaded with UploadWizard Risk management Space Shuttle Challenger disaster Gaskets | ||||
