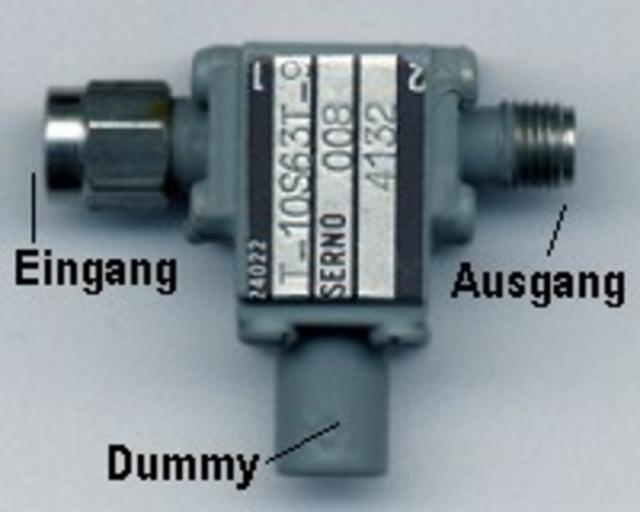

| Keywords: Ferritisolator2.jpg Verwendung von einem Ferritzirkulator als Isolator A microwave ferrite circulator used as an isolator The circulator is the top device shaped like a T with three connectors ports to attach to coaxial cable lines carrying radio waves It has the property that a radio signal entering any port only comes out of the port clockwise of it In this example the bottom port is attached to a matched resistive dummy load labeled Dummy which absorbs power So radio power entering the righthand port labeled Eingang Input will come out of the lefthand port labeled Ausgang Output but radio power entering the lefthand port is absorbed by the load This device is used to prevent any radio power reflected from the load attached to the lefthand port from returning to the source eigener Scan des Originalteils 2006-10-01 Averse Averse de Original upload log de wikipedia Wdwd CommonsHelper page de wikipedia Ferritisolator2 jpg 2006-10-02 18 15 Averse 200×160× 9505 bytes <nowiki> Andere Versionen PD- wg Geringfügigkeit </nowiki> Waveguides Circulator circuits Dummy loads Ferrite cores | ||||
